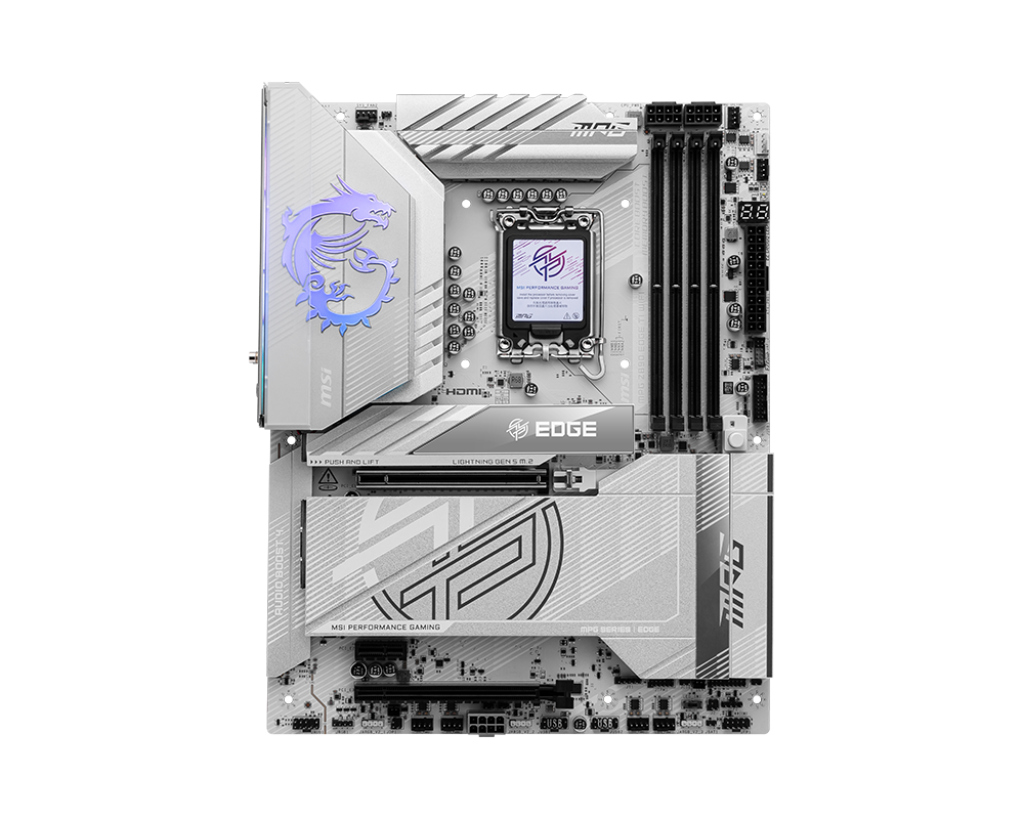

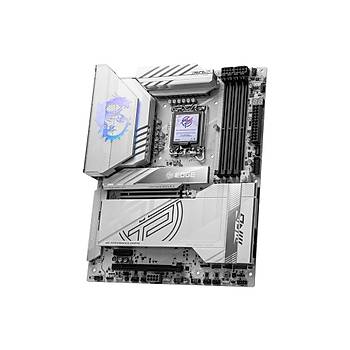

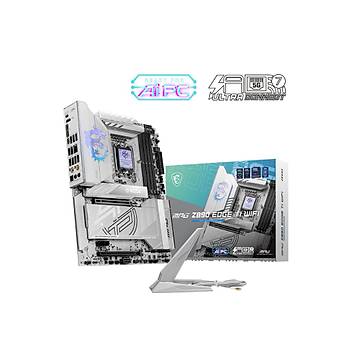

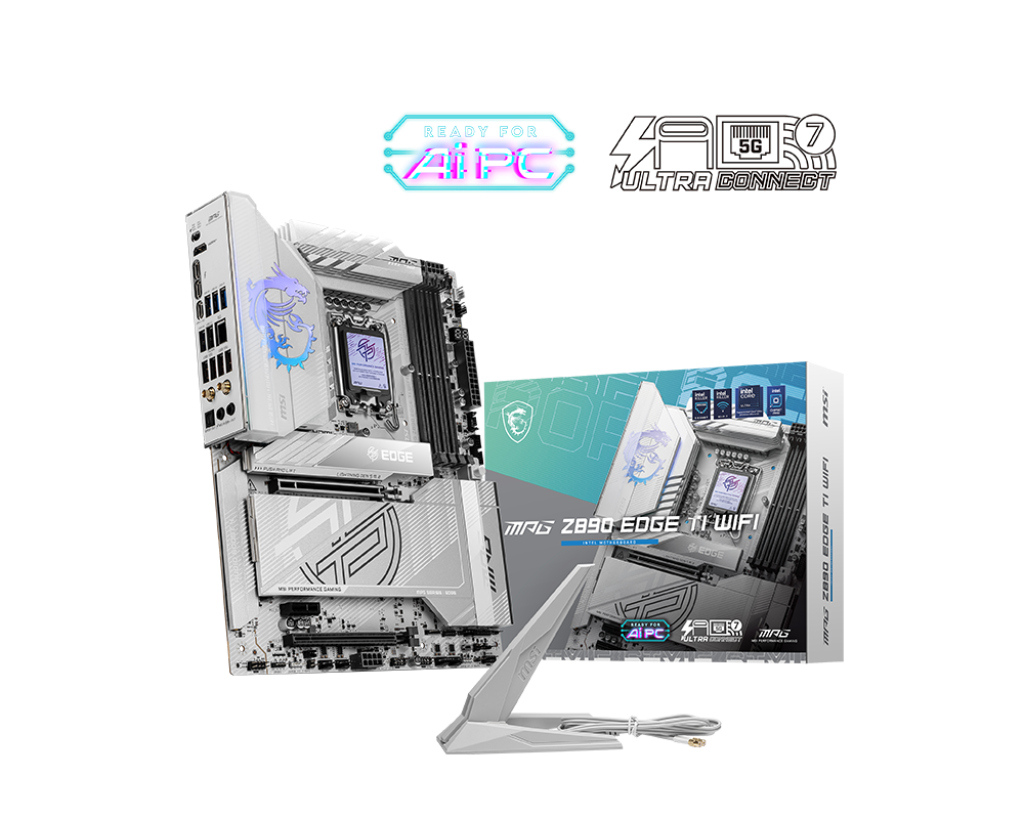

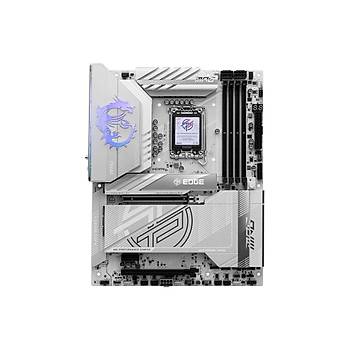

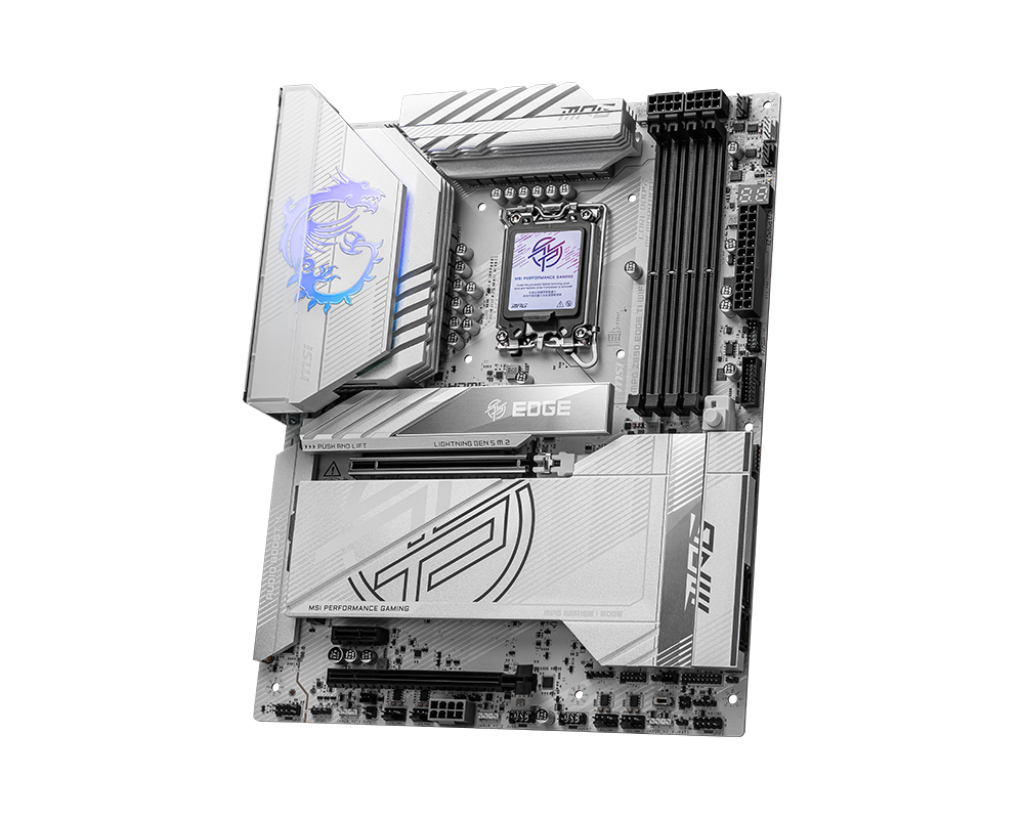

MSI Mpg Z890 Edge TI Wi-Fi 7 Intel LGA1851 9200MHZ(OC) 5xM.2 DDR5 ATX Anakart

Fiyat:
22.276,12 TL
Havale / EFT:
21.941,98 TL
2.469,12 TL'den ba�layan taksit se�enekleri i�in t�klay�n.
Ayn� G�n Kargo Kargo Bedava

MSI MB MPG Z890 EDGE TI WIFI SOKET 1851 DDR5 9200MHZ(OC) USB 20Gbps 5xM.2 2xTB4 HDMI DISPLAY 5G LAN WIFI 7 ATX



MPG Z890 EDGE TI WIFI, beyaz PC kurulumlar�n� sevenler i�in farkl� bir kimlik sergilemek amac�yla g�m��-beyaz renk �emas�na sahiptir. Ayr�ca Killer Wi-Fi 7 ��z�m�, 5G LAN, Thunderbolt 4 ve en yeni PCIe 5.0 uyumlulu�u, Ek PCIe G�c� sayesinde g��l�d�r. Intel Core Ultra i�lemciler i�in en iyi beyaz temal� Z890 ATX anakartt�r.

Intel Z890 Anakart �zellikleri Tablosu



�zellik

Detay

Yonga Seti

Intel Z890

��lemci

Intel Core™ Ultra ��lemciler (Seri 2), LGA 1851 soket

Bellek

4x DDR5 UDIMM, Max 256GB, 9200 MT/s'ye kadar (OC)

Dahili Grafik

1x HDMI 2.1, 2x Type-C DisplayPort, Thunderbolt 4 (��lemciye g�re de�i�ir)

Yuvalar

2x PCIe 5.0 x16, 1x PCIe 4.0 x1, 2x PCIe 4.0 x4

Ses

Realtek ALC1220P Codec, 7.1 Kanal HD Ses, S/PDIF

Depolama

5x M.2 (PCIe 5.0/4.0), 4x SATA 6Gb/s

RAID

SATA/M.2 i�in RAID 0, 1, 5, 10

USB

1x USB 2.0, 4x USB 2.0, 4x USB 5Gbps, 4x USB 10Gbps, 1x USB 10Gbps Type-C, 1x USB 20Gbps Type-C

A�

Intel Killer E5000B 5G LAN, Intel Killer BE1750x Wi-Fi 7

Di�er

Thunderbolt 4, RGB LED, TPM 2.0 deste�i







Chipset

INTEL Z890

CPU

Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

• The DIMM slots on this motherboard have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

Onboard Graphics

1x HDMI™
Supports HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
ThundeboltTM 4 ports, , supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

• PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4

Audio

Realtek® ALC1220P Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

Storage

5x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices
4x SATA 6G

*Please refer to the manual for M.2 SSD heatsink restrictions.

RAID

•Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices
•Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices

Onboard Thunderbolt

2x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display

USB

1x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
4x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1

LAN

1x Intel® Killer™ E5000B 5G LAN

Internal IO

1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Thermal Sensor connectors(T_SEN)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports

WIRELESS LAN & BLUETOOTH

Intel® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

LED FEATURE

4x EZ Debug LED
1x EZ Digit Debug LED

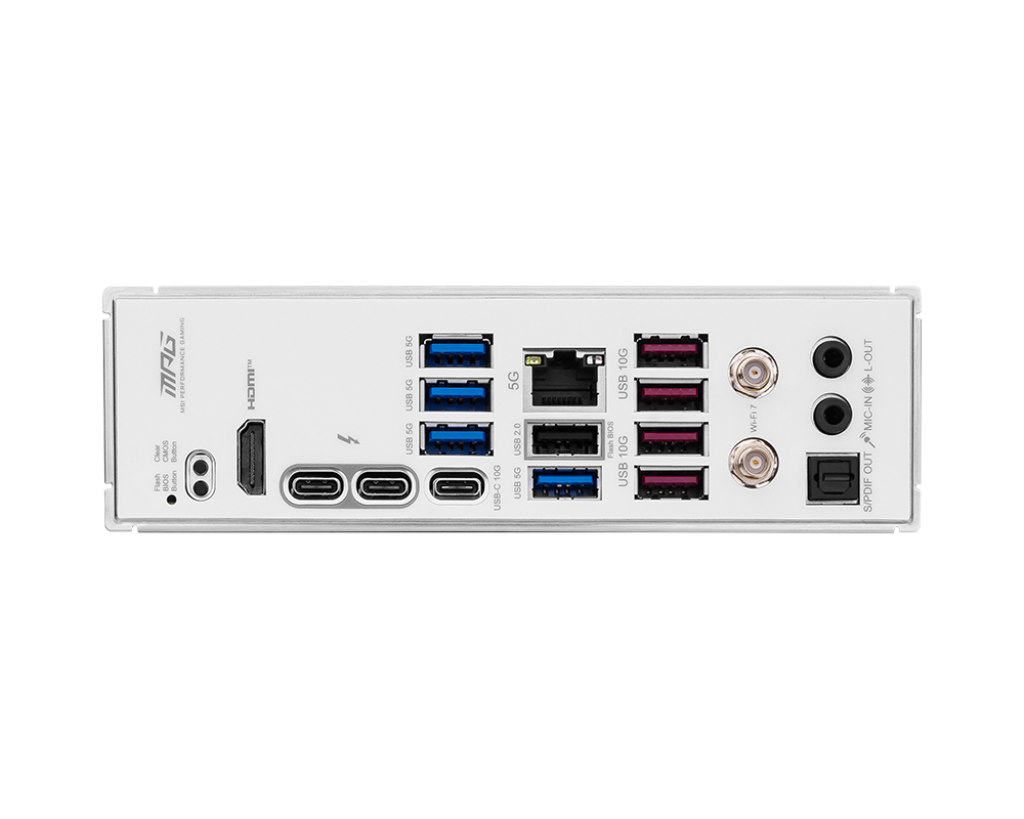

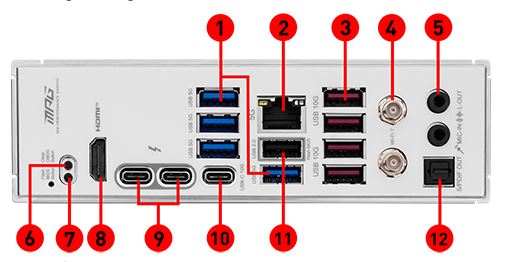

BACK PANEL PORTS






  1. 1- USB 5Gbps Type-A

  2. 2- 5G LAN

  3. 3- USB 10Gbps Type-A

  4. 4- Wi-Fi / Bluetooth

  5. 5- Audio Connectors

  6. 6- Clear CMOS Button

  7. 7- Flash BIOS Button

  8. 8- HDMI™

  9. 9- Thunderbolt 4

  10. 10- USB 10Gbps Type-C

  11. 11- USB 2.0

  12. 12- Optical S/PDIF Out

OPERATING SYSTEM

Support for Windows® 11 64-bit





Teknik �zellikler
��lemci Markas�INTEL
��lemci Soket TipiLGA1851 - Intel Core Ultra - 15. Nesil
Ram TipiDDR5
ChipsetINTEL Z890
Anakart BoyutuATX
RAM Frekans�9200 MHz
Ram Slotu4 Adet
Ram Kapasitesi256 GB
M.2 Slotu 5 Adet
BluetoothVar
Overclock (H�z A��rtma)Var
SSD SoketM2
HDMI ��k���Var
Wi-FiVar
DisplayPortVar
Di�er �zellikler
Stok Kodu210274895
MarkaMSI
Stok DurumuVar
Garanti (Y�l)2
4711377260800
