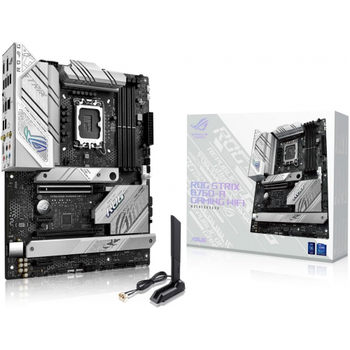

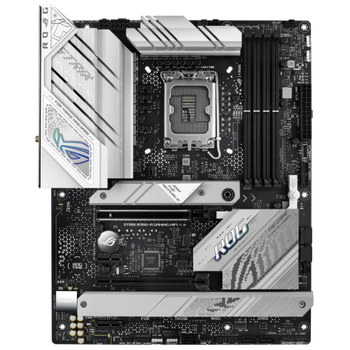

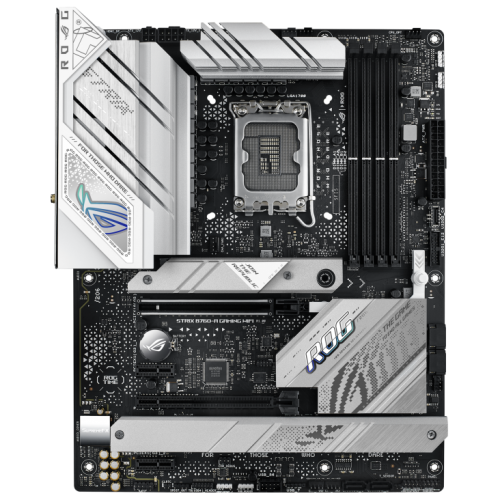

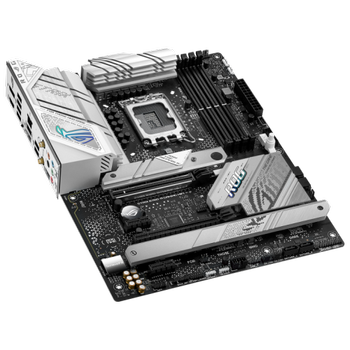

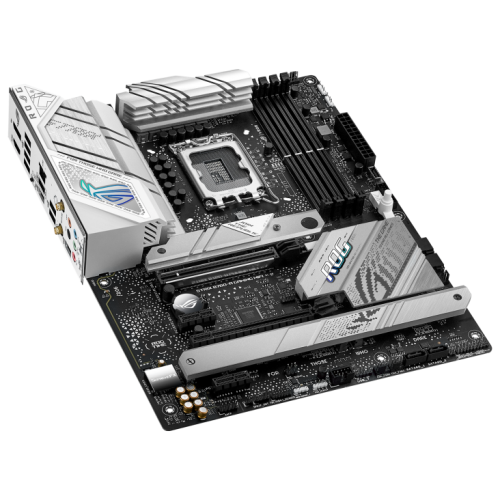

Asus Rog Strix B760-A Gaming Wi-Fi DDR5 Bluetooth LGA1700 mATX Anakart

Asus Rog Strix B760-A Gaming Wi-Fi 4xDDR5 3x M.2, HDMI, DP, Type-C, Wi-Fi 6E, Bluetooth v5.3, 12-13.14.Nesil, LGA1700 Soket, Anakart

---



��lemci

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
13. Nesil Intel® Core™ ve 12. Nesil Intel® Core™, Pentium® Gold ve Celeron® ��lemciler i�in Intel® Soket LGA1700
Intel® Turbo Boost Teknolojisi 2.0 ve Intel® Turbo Boost Max Teknolojisi 3.0� destekler**
* CPU destek listesi i�in www.asus.com adresine bak�n.
** Intel® Turbo Boost Max Teknolojisi 3.0 deste�i, CPU t�rlerine ba�l�d�r.

Yonga Seti

Intel® B760 Chipset

Bellek

4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit //www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
4 x DIMM yuvas�, Maks. 192 GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000 (OC)/5800(OC)/5600/5400/5200/5000/4800 ECC Olmayan, Arabelle�e Al�nmam�� Bellek*
�ift Kanall� Bellek Mimarisi
Intel® Extreme Bellek Profilini (XMP) destekler
OptiMem II
* Desteklenen bellek t�rleri, veri h�z� (h�z�) ve DRAM mod�llerinin say�s�, CPU ve bellek yap�land�rmas�na g�re de�i�ir, daha fazla bilgi i�in l�tfen �r�n bilgileri sitesinin Destek sekmesi alt�ndaki CPU/Bellek Deste�i listesine bak�n veya // adresini ziyaret edin. www.asus.com/support/
* ECC olmayan, tamponlanmam�� DDR5 bellek, On-Die ECC i�levini destekler.

Grafikler

1 x DisplayPort**
1 x HDMITM port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. // Please refer to AMD CPU specifications.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors or graphic cards resolution.
1 x DisplayPort**
1 x HDMI ba�lant� noktas�***
* Grafik �zellikleri CPU t�rleri aras�nda de�i�iklik g�sterebilir. G�ncellemeler i�in l�tfen www.intel.com adresine bak�n. // L�tfen AMD CPU �zelliklerine bak�n.
** Maks. DisplayPort 1.4te belirtildi�i gibi 4K@60Hz
*** HDMI 2.1de belirtildi�i gibi 4K@60Hzi destekler.
**** VGA ��z�n�rl�k deste�i, i�lemcilerin veya grafik kartlar�n�n ��z�n�rl���ne ba�l�d�r.

Geni�leme Yuvalar�

Intel® Core™ Processors (14th & 13th & 12th Gen)
1 x PCIe 5.0 x16 slot

Intel® B760 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)*
2 x PCIe 3.0 x1 slots*

* PCIe x1(G3)_1 and PCIe x1(G3)_2 slots share bandwidth with PCIe x16(G3). When PCIe x1(G3)_1 or PCIe x1(G3)_2 slot is operating, PCIe x16(G3) will only supports x2 mode.

- To ensure compatibility of the device installed, please refer to //www.asus.com/support/ for the list of supported peripherals.
Intel® 13. ve 12. Nesil ��lemciler
1 x PCIe 5.0 x16 yuvas�

Intel® B760 Chipset
1 x PCIe 3.0 x16 yuvas� (x4 modunu destekler)*
2 x  PCIe 3.0 x1 yuvas�*
* PCIe x1(G3)_1 ve PCIe x1(G3)_2 yuvalar�, PCIe x16(G3) ile bant geni�li�ini payla��r. PCIe x1(G3)_1 veya PCIe x1(G3)_2 yuvas� �al���rken, PCIe x16(G3) yaln�zca x2 modunu destekler.
- Kurulan cihaz�n uyumlulu�undan emin olmak i�in desteklenen �evre birimlerinin listesi i�in l�tfen //www.asus.com/support/ adresine bak�n.

Depolama

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Toplam 3 x M.2 yuvas�n� ve 4 x SATA 6Gb/s ba�lant� noktas�n� destekler*

Intel® 13. ve 12. Nesil ��lemciler
M.2_1 yuvas� (Anahtar M), tip 2242/2260/2280 (PCIe 4.0 x4 modunu destekler)

Intel® B760 Chipset
M.2_2 yuvas� (Anahtar M), tip 2242/2260/2280/22110 (PCIe 4.0 x4 modunu destekler)
M.2_3 yuvas� (Anahtar M), tip 2242/2260/2280 (PCIe 4.0 x4 modunu destekler)
4 x SATA 6 Gb/s ba�lant� noktas�
* Intel® H�zl� Depolama Teknolojisi, SATA RAID 0/1/5/10u destekler.

Ethernet

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Kablosuz & Bluetooth

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturers website for the latest specifications.
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
2,4/5/6 GHz frekans band�n� destekler*
Bluetooth® v5.3**
* WiFi 6E 6GHz d�zenlemeleri �lkeden �lkeye de�i�iklik g�sterebilir.
** Bluetooth s�r�m� de�i�ebilir, en son teknik �zellikler i�in l�tfen Wi-Fi mod�l� �reticisinin web sitesine bak�n.

USB

Rear USB (Total 9 ports)
1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)
3 x USB 3.2 Gen 1 (5G) port (2 x Type-A, 1 x USB Type-C®)
4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 6 ports)
1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports
Arka USB (Toplam 9 ba�lant� noktas�)
1 x USB 3.2 Gen 2x2 (20G) ba�lant� noktas� (1 x USB Type-C®)
1 x USB 3.2 Gen 2 (10G) ba�lant� noktas� (1 x Type-A)
3 x USB 3.2 Gen 1 (5G) ba�lant� noktas� (2 x Type-A, 1 x USB Type-C®)
4 x USB 2.0 ba�lant� noktas� (4 x Type-A)

�n USB (Toplam 6 ba�lant� noktas�)
1 x USB 3.2 Gen 2 (10G) konekt�r (USB Type-C®yi destekler)
1 x USB 3.2 Gen 1 (5G) ba�l���, 2 ek USB 3.2 Gen 1 ba�lant� noktas�n� destekler
1 x USB 2.0 ba�l��� ve 1 x USB 2.0 5-1 pin ba�l��� deste�i 3 ek USB 2.0 ba�lant� noktas�

Ses

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback

Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
*The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
ROG SupremeFX 7.1 Surround Ses Y�ksek Tan�ml� Ses CODEC ALC4080
- �n ve arka kulakl�k ��k��lar� i�in empedans hissi
- Destekler: Jak alg�lama, �oklu ak��, �n Panel Jak�n� yeniden g�revlendirme
- Y�ksek kaliteli 120 dB SNR stereo oynatma ��k��� ve 113 dB SNR kay�t giri�i
- 32-Bit/384 kHze kadar oynatmay� destekler

Ses �zellikleri
- SupremeFX Koruma Teknolojisi
- Savitech SV3H712 AMP
- Birinci s�n�f ses kapasit�rleri
- �zel ses PCB katmanlar�
- Ses korumas�
*Arka panel Hat ��k��� ba�lant� noktas� uzamsal sesi desteklemez. Uzamsal ses kullanmak istiyorsan�z, ses ��k�� cihaz�n�z� kasan�z�n �n panelindeki ses jak�na ba�lad���n�zdan emin olun.

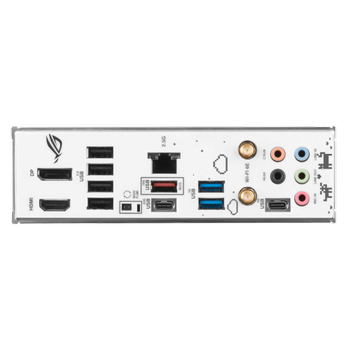

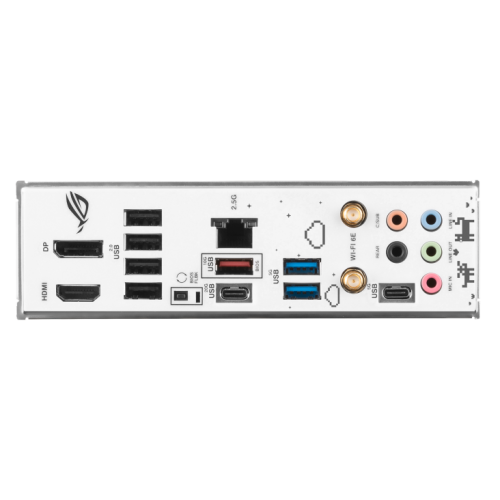

Arka Panel Giri�/��k�� Ba�lant� Noktalar�

1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)
3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A, 1 x USB Type-C®)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™  button
1 x USB 3.2 Gen 2x2 (20G) ba�lant� noktas� (1 x USB Type-C®)
1 x USB 3.2 Gen 2 (10G) ba�lant� noktas� (1 x Type-A)
3 x USB 3.2 Gen 1 (5G) ba�lant� noktas� (2 x Type-A, 1 x USB Type-C®)
4 x USB 2.0 ba�lant� noktas� (4 x Type-A)
1 x DisplayPort
1 x HDMI™ ba�lant� noktas�
1 x Wi-Fi Mod�l�
1 x Intel® 2.5Gb Ethernet ba�lant� noktas�
5 x Ses jak�
1 x BIOS FlashBack™ d��mesi

Dahili Giri�/��k�� Konekt�rleri

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector

Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports


Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-5 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header
Fan ve So�utma ile ilgili
1 x 4-pin CPU Fan ba�l���
1 x 4-pin CPU OPT Fan ba�l���
1 x 4 pimli AIO Pompa ba�l���
4 x 4 pimli Kasa Fan� ba�l�klar�

G��le ilgili
1 x 24 pimli Ana G�� konekt�r�
1 x 8 pimli +12V G�� konekt�r�
1 x 4 pimli +12V G�� konekt�r�

Depolama ile ilgili
3 x M.2 yuvas� (Anahtar M)
4 x SATA 6 Gb/s ba�lant� noktas�

USB
1 x USB 3.2 Gen 2 (10G) konekt�r (USB Type-C®yi destekler)
1 x USB 3.2 Gen 1 (5G) ba�l���, 2 ek USB 3.2 Gen 1 ba�lant� noktas�n� destekler
1 x USB 2.0 ba�l��� ve 1 x USB 2.0 5-1 pin ba�l��� deste�i 3 ek USB 2.0 ba�lant� noktas�

�e�itli
3 x Adreslenebilir Gen 2 ba�l���
1 x Aura RGB ba�l���
1 x Clear CMOS ba�l���
1 x �n Panel Ses ba�l��� (AAFP)
1 x S/PDIF ��k�� ba�l���
1 x 20-5 pimli Sistem Paneli ba�l���
1 x Termal Sens�r ba�l���
1 x Thunderbolt™ (USB4®) ba�l���

Ay�rt Edici �zellikler

Extreme Engine Digi+
- 5K Black Metallic Capacitors

ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design

ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM

Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
 Extreme Engine Digi+
- 5K Siyah Metal Kapasit�rler

ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [k�rm�z�], DRAM [sar�], VGA [beyaz], �ny�kleme Ayg�t� [sar� ye�il])
- Q-Slot

ASUS Termal ��z�m
- M.2 so�utucu
- VRM so�utucu tasar�m�

ASUS EZ DIY
- BIOS FlashBack™ d��mesi
- BIOS FlashBack™ LEDi
- CPU Soket kolu koruyucusu
- ProCool
- �nceden monte edilmi� G/� kalkan�
- SafeSlot
- SafeDIMM

Aura Sync
- Aura RGB ba�l���
- Adreslenebilir Gen 2 ba�l�klar�

Yaz�l�m �zellikleri

ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound

ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
- Two-Way AI Noise Cancellation
- Performance and Power Saving Utility
AI Suite 3
- DIGI+ VRM
- PC Cleaner
MyAsus
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers
WinRAR

UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
MemTest86
ROGa �zel Yaz�l�m
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound

ASUSa �zel Yaz�l�m
Armoury Crate
- AIDA64 Extreme (60 g�nl�k �cretsiz deneme)
- Aura Creator
- Aura Sync
- Fan Xpert 4
- G�� tasarrufu
- �ki Y�nl� AI G�r�lt� �nleme
- Performans ve G�� Tasarrufu Yard�mc� Program�
AI Suite 3
- DIGI+ VRMsi
- PC Cleaner
MyAsus
Adobe Creative Cloud (�cretsiz Deneme)
Oyuncular i�in Norton 360
WinRAR

UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Modu
MemTest86

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Y�netilebilirlik

WOL by PME
PME taraf�ndan WOL

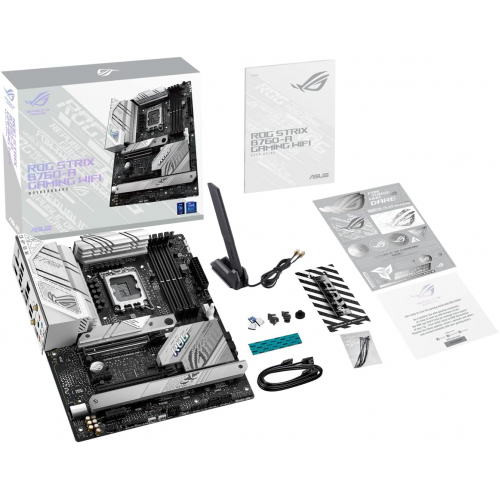

Aksesuarlar

Cables
2 x SATA 6Gb/s cables

Additional Cooling Kit
1 x Thermal pad for M.2

Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG Strix stickers
1 x ROG Strix thank you card
1 x M.2 Rubber Packages

Documentation
1 x User guide
Kablolar
2 x SATA 6 Gb/sn kablo

Ek So�utma Kiti
M.2 i�in 1 x Termal ped

�e�itli
1 x ASUS Wi-Fi hareketli antenler
1 x Kablo ba�lar� paketi
1 x M.2 Q-Latch paketi
1 x ROG anahtarl�k
1 x ROG Strix ��kartmas�
1 x ROG Strix te�ekk�r kart�
1 x M.2 Kau�uk Paketler

Belgeler
1 x Kullan�m k�lavuzu

��letim Sistemi

Windows® 11, Windows® 10 64-bit

Form Fakt�r�

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
ATX Form Fakt�r�
12 in� x 9,6 in� (30,5 cm x 24,4 cm)

ROG STRIX B760-A GAMING WIFI

Strix B760-A D4 �n y�z�nde saf bir estetik ta��r ancak gri al�minyum so�utma bloklar�n�n alt�nda y�ksek performansl� donan�ma sahip koyu renkli bir PCB bulunur. Intel® 13.nesil i�lemcilerin y�ksek �ekirdek say�lar�yla ba� edebilmek i�in bir VRM yap�land�rmas�, ekran kartlar� i�in PCIe 5.0 bant geni�li�i ve yeni nesil WiFi 6E bir araya gelerek bu saf anakarta devasa bir oyun performans� veriyor. DDR5 ile oyunlar ve uygulamalar i�in daha da fazla bant geni�li�i sa�l�yor.
